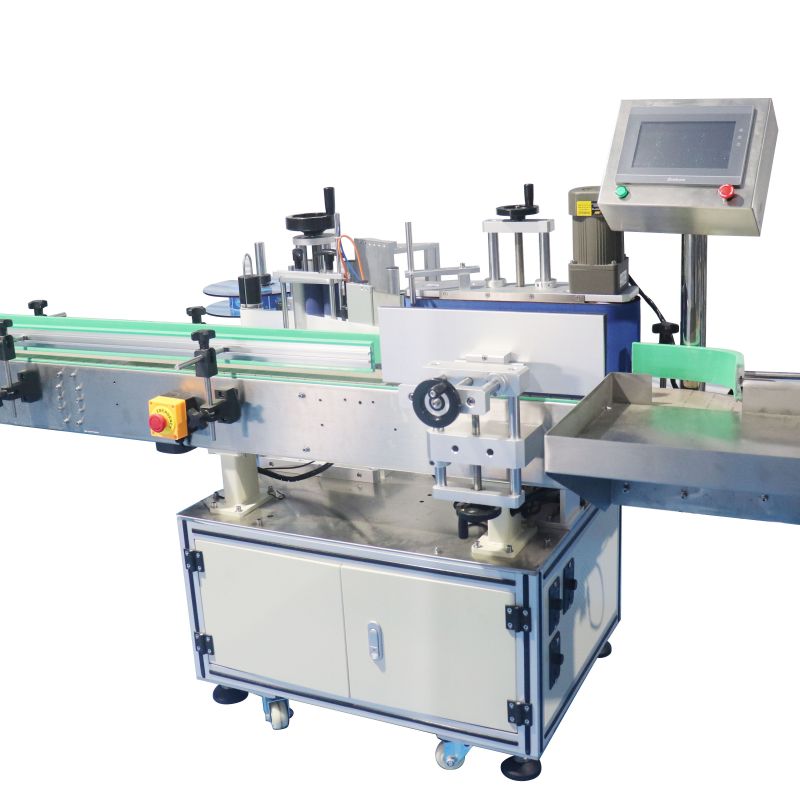

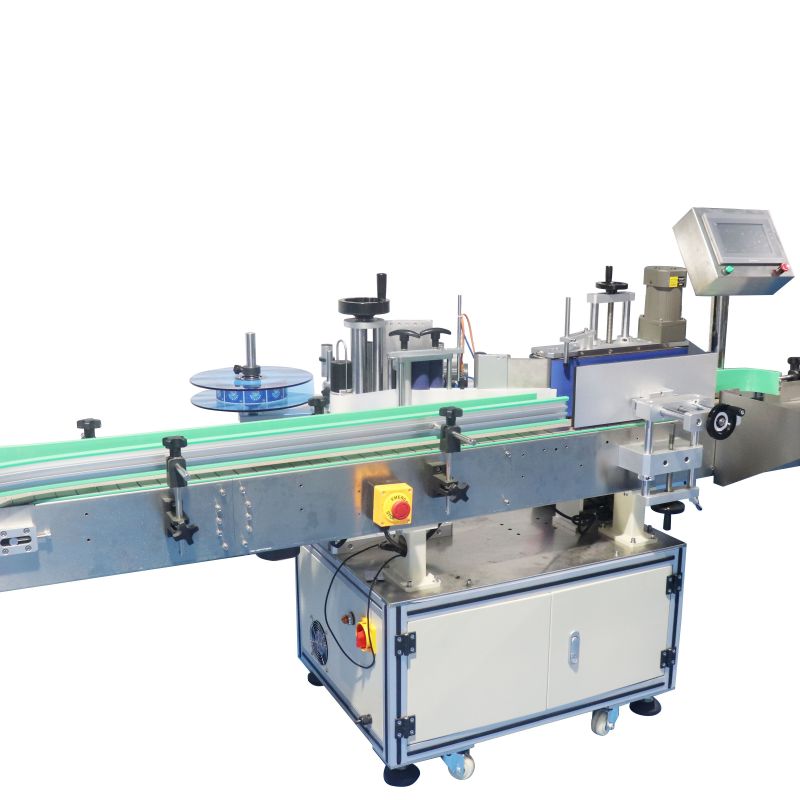

AS-C01 Automatic Roll-On Vertical Round Bottle Labeling Machine

Suitable for round bottle labeling in industries such as pharmaceuticals, food, and daily chemical products, it can be used for full circumference labeling and semi circumference labeling.
Optional automatic rotary table bottle sorting machine.
It can be directly connected to the front-end production line to automatically feed bottles into the labeling machine, increasing efficiency.

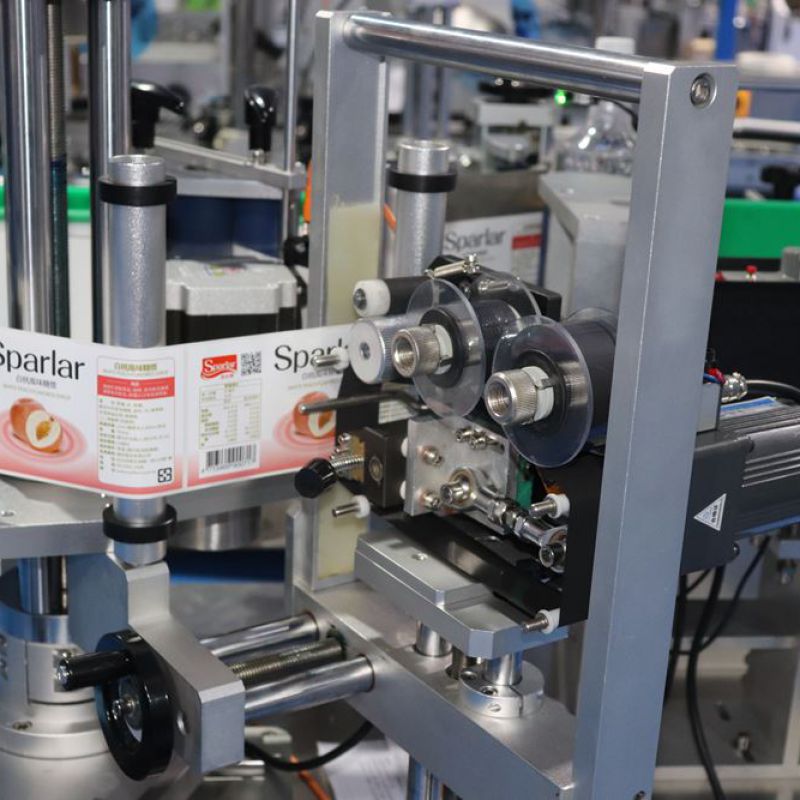

Optional ribbon coding and labeling machine.
Production date and batch number can be printed online, reducing bottle packaging processes and improving production efficiency.

Labeling accuracy Labeling speed Weight Applicable product diameter
±1mm
about 30-120P/min
185KG
Φ25mm~Φ100mm
Get a Quote

Your Partner for Efficient High-Speed Labeling

At XHYPACKING, we deliver more than just labeling machines. We provide complete, end-to-end solutions tailored to your production goals. From standalone automatic labelers to fully integrated shrink wrapping lines, our technology adapts to your containers — round, flat, or irregular. Explore our diverse capabilities and discover how we optimize your packaging process with efficiency and precision.

  • High-Precision Labeling — Stable & Reliable

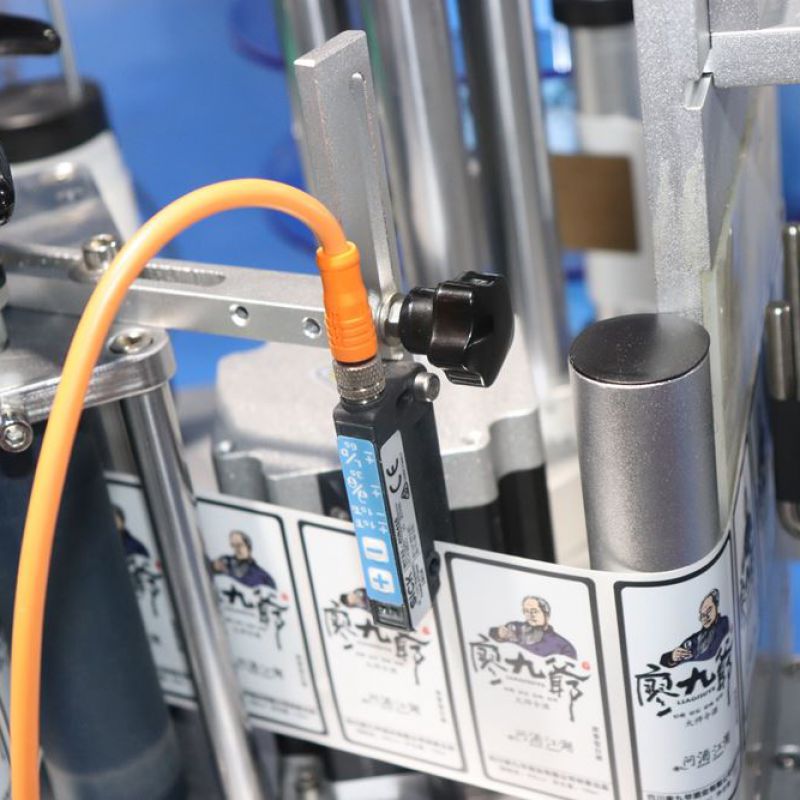

    Equipped with high-precision servo motor and label sensor, achieving ±1mm accuracy for consistent mass production.

  • Vertical Design — High Efficiency

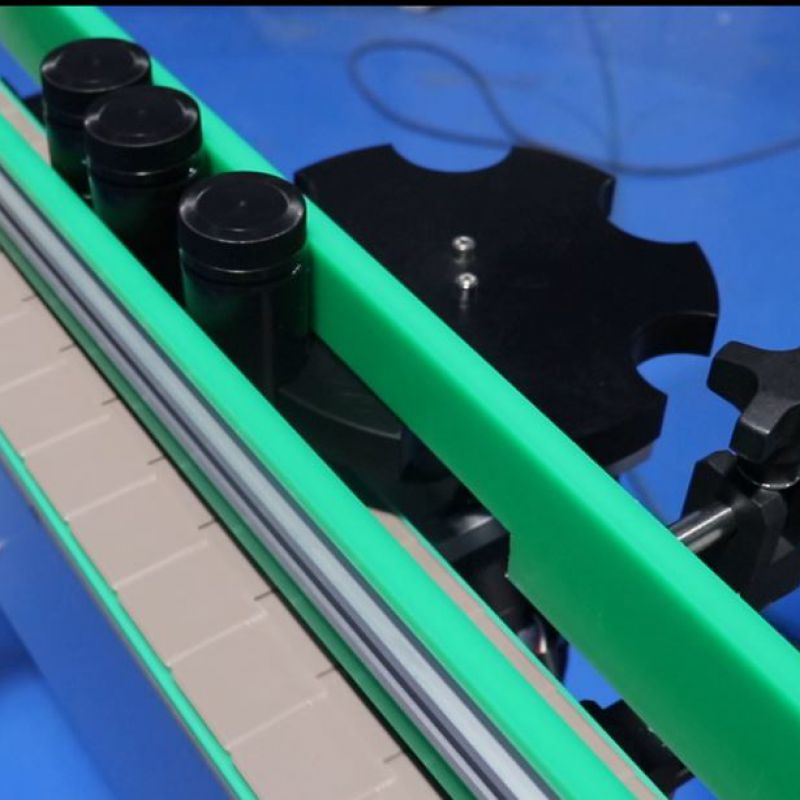

    Vertical bottle conveying structure optimized for round bottles, running smoothly up to 120 bottles per minute.

  • Roll-On Application — Smooth & Bubble-Free

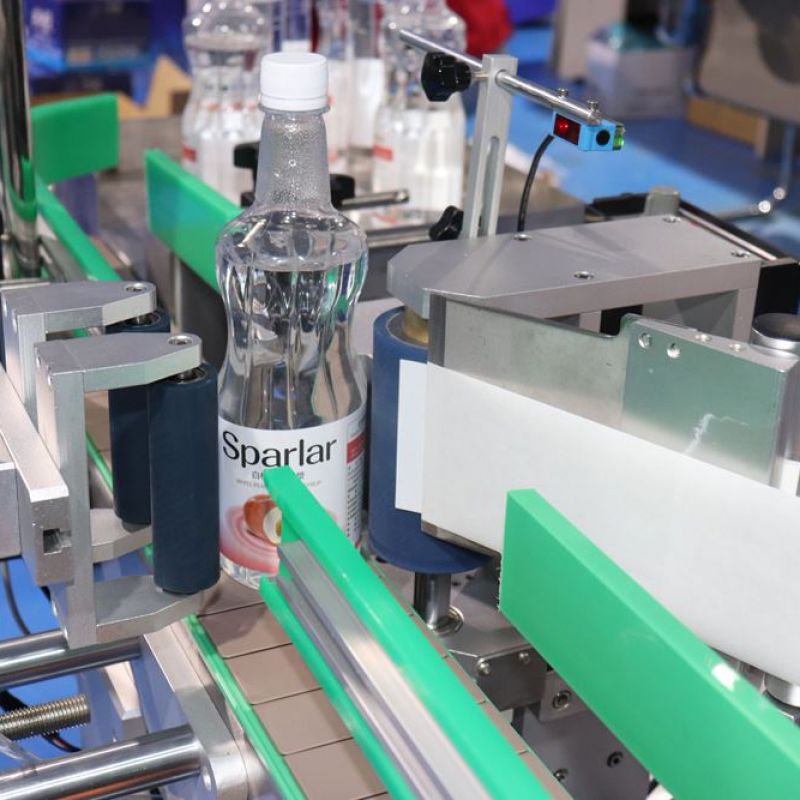

    Roll-on labeling mechanism ensures tight adhesion to round bottle surfaces, preventing bubbles and wrinkles for a professional finish.

  • Touchscreen Control — Quick Changeover

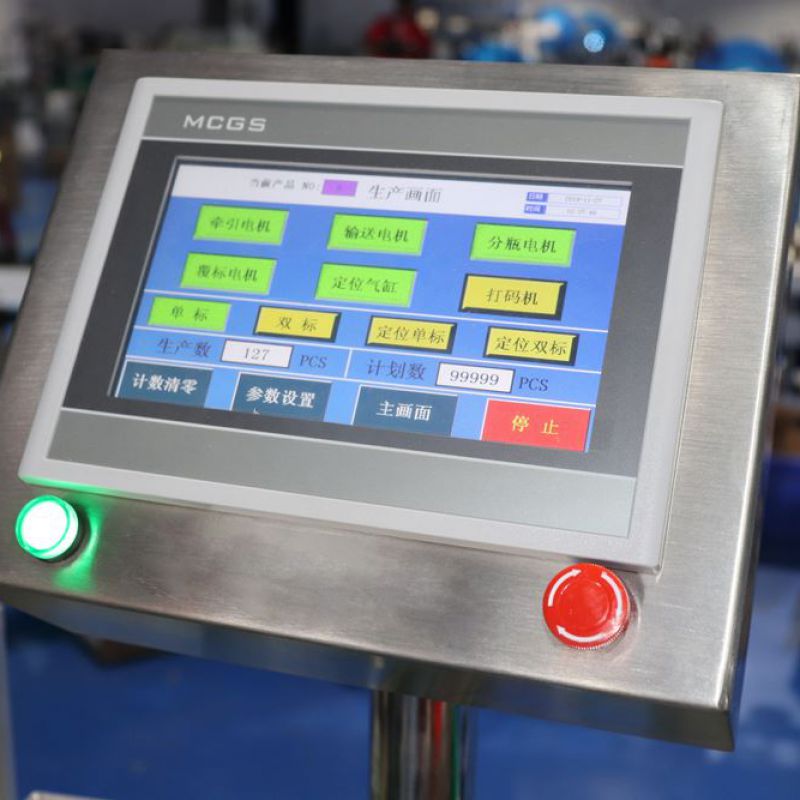

    PLC with HMI touchscreen, production parameters can be saved, tool-free adjustment for different bottle sizes enables one-click changeover.

Machine parameters



Machine model

AS-C01

Notes

Labeling accuracy

±1mmExcluding product and label errors
Labeling speed30～120 pieces/minuteRelated to product and label size
Applicable product diameter (for round bottles)25mm～100mm
Applicable products and heights25mm～300mm
Applicable label sizelength：20mm～310mm
Bottom paper width：15mm～150mm
Inner diameter of label drumΦ76mm
Maximum outer diameter of labelΦ280mm
Overall dimensions (length * width * height)1950mm*1100mm*1280mm
Applicable power supply220V/50HZ
Total weight185Kg

Transaction Information
Minimum Order Quantityone unit
Port of shipmentGuangzhou/shenzhen
Packaging informationAll packaged in wooden boxes
Payment methodPay 50% deposit first, and then pay 50% after acceptance
Period for dispatch≥ 15 working days
Payment channelL/Cþ  D/A þ  D/Pþ  Western Unionþ   Money Gram ¨   T/T¨   Paypal¨
