AS-C13 Semi-Automatic Vertical Round Bottle Labeling Machine

Suitable for labeling cylindrical objects of various specifications, small cone round bottles, such as xylitol, cosmetic round bottles, wine bottles, etc. It can achieve full/half week labeling, circumferential front and back labeling, and the distance between front and back labels can be adjusted arbitrarily.
Optional circular positioning detection device can be equipped to achieve circular positioning labeling.
Optional color coding machines and inkjet printers can be used to print production batch numbers and other information while labeling, reducing packaging processes and improving production efficiency. Widely used in industries such as food, cosmetics, chemicals, and pharmaceuticals.

Labeling accuracy	Labeling speed	Weight	Applicable product diameter
±0.5mm	about 15-20P/min	35KG	￠15mm~￠160mm

Get a Quote

Compact body, flexible deployment

Suitable for laboratory and small-scale production, desktop design, no space occupation
Easy to operate, no training required

Touch screen control, one click start, ordinary workers can get started in one minute
Fast production change and strong compatibility

Manually adjust the labeling head and covering mechanism to achieve quick switching between round and oval bottles of various sizes
Brand accessories, stable and reliable

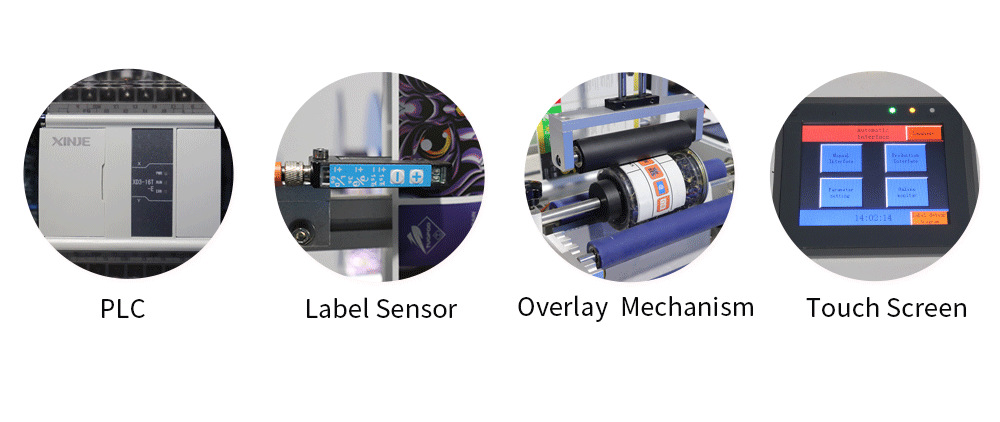

The core components such as motors and sensors are all made of well-known brands to ensure long-term stable operation

Machine parameters


Machine model	AS-C13	Notes
Labeling accuracy	±0.5mm	Excluding product and label errors
Labeling speed	15～20 pieces/minute	Related to product and label size
Applicable product diameter (for round bottles)	15mm～160mm
Applicable products and heights	15mm～380mm
Applicable label size	length：5mm～380mm
	Bottom paper width：10mm～180mm
Inner diameter of label drum	Φ76mm
Maximum outer diameter of label	Φ280mm
*Overall dimensions (length width * height)**	900mm450mm900mm
Applicable power supply	220V/50HZ
Total weight	35Kg

Transaction Information
Minimum Order Quantity	one unit
Port of shipment	Guangzhou/shenzhen
Packaging information	All packaged in wooden boxes
Payment method	Pay 50% deposit first, and then pay 50% after acceptance
Period for dispatch	≥ 15 working days
Payment channel	L/Cþ D/A þ D/Pþ Western Unionþ Money Gram ¨ T/T¨ Paypal¨
